PERFORATING MACHINE

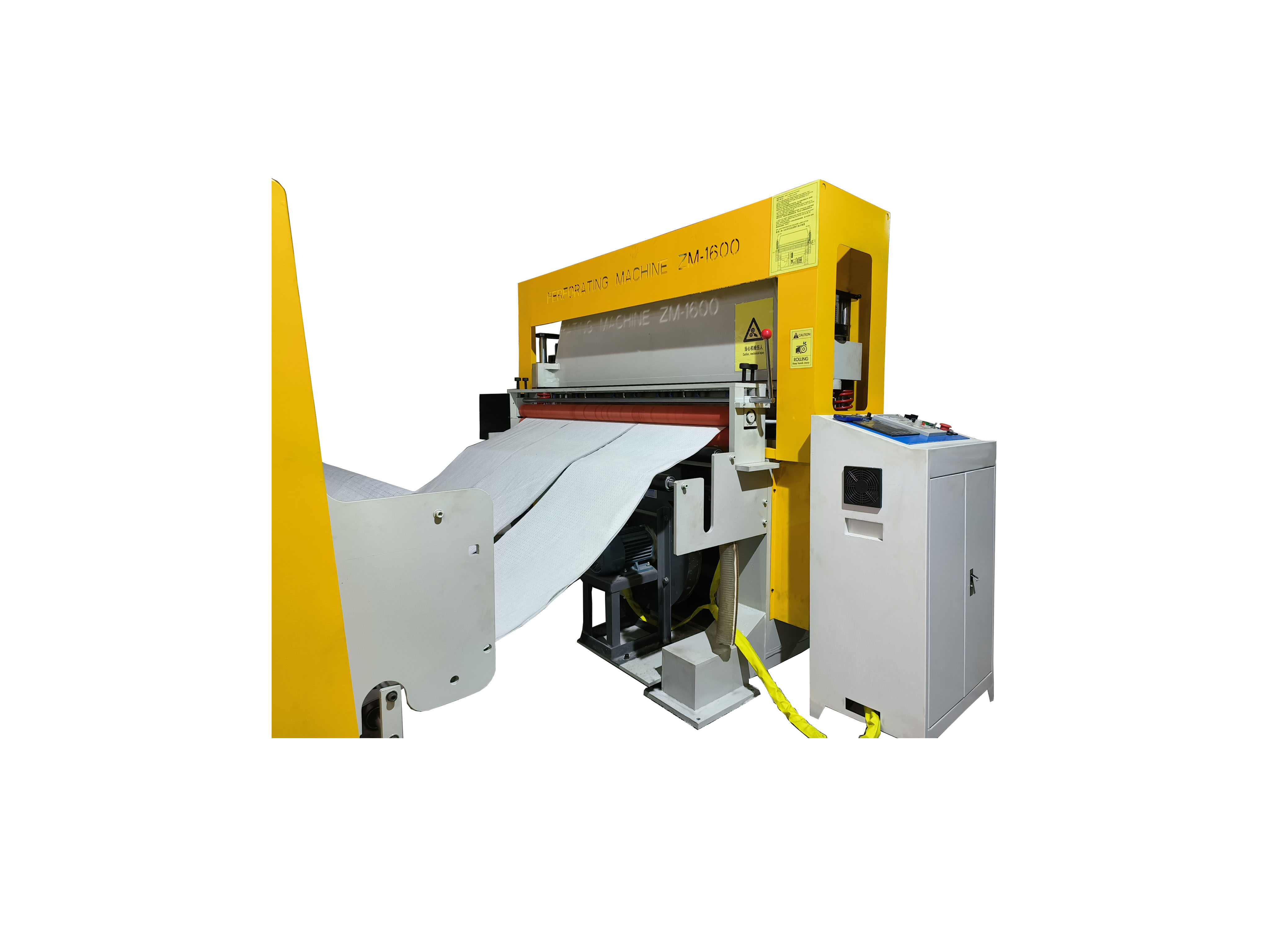

ZM-1600-2SF EVA foam perforating machine
EVA foam perforating machine with matched punch-and-die tooling. Servo-driven roller feeding with air-shaft unwinding and rewinding.
- No backing paper required
- Smooth, burr-free hole edges on both sides
- No residual punching scrap
Machine details
| Parameter | Specification |
|---|---|
| Perforating width | 1600 mm |
| Press stroke | 50 mm |
| Maximum stroke rate | 200 strokes/min |
| Punching force at full speed | 100 metric tons-force |
| Total power | 22 kW |
| Main motor power | 18.5 kW |
| Power supply | 3-phase 380 V / 50–60 Hz |
| Air pressure | 0.6 MPa |
| Machine weight | 4500 kg |
| Layout dimensions (L × W × H) | 8 × 4 × 2 m |
| Perforating tooling | Matched solid-pin punch-and-die tooling |
| Parameter | Specification |
|---|---|
| Material format | Rolls |
| Feeding method | Servo-driven roller feeding |
| Operator interface | Chinese / English touchscreen |
| Unwinding and rewinding | Air-shaft roll handling |
| Air-shaft size | 3-inch |
| Scrap collection | Blower collection |
| Customisation and options | Multi-station roll handling and rewind web guiding |
